Hybrid AC/DC Solar Water Pump with Automatic Switch, for Industrial Irrigation and Farming

Categories	AC/DC Submersible Solar Pump
Brand	Solarker Hybrid ACDC Solar
Model	DY-D3600AC/DC
DC Input	108-430V DC
AC Input	100-264V/ 50-60HZ/ 1 Phase
DC Current	<20A
Net Weight	2.4KG
Solar Panel	3-8*500W
Update Time	Sep 23,2025

Contact Now

Favorites

Detail Information

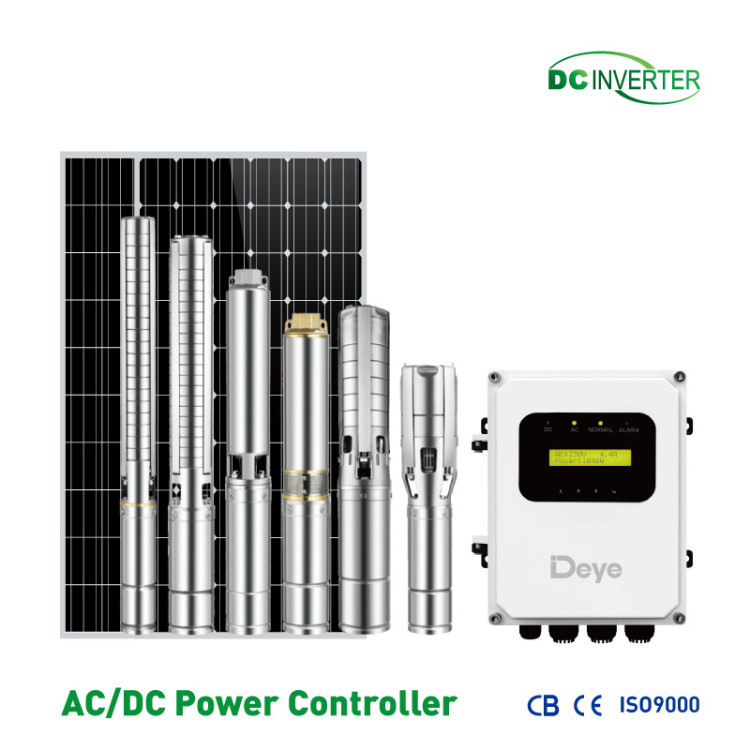

Solar Water Pump

Solar & DC Inverter Pump Technology Leader

As a world-renowned solar inverter brand, Deye incorporates advanced inverter and MPPT technologies into its solar pump controllers, resulting in higher solar energy conversion efficiency. These controllers efficiently convert photovoltaic voltage and current into more stable outputs suitable for Deye solar water pumps. With features such as automatic DC/AC switching, soft start, and overvoltage/overcurrent protection, the entire solar pump system operates more stably, efficiently, and energy-efficiently. Therefore, Deye solar pump controllers are widely used for connecting and controlling various types of solar pumps.

Solarker Deye AC/DC Solar Water Pump Features

Technical Characteristics

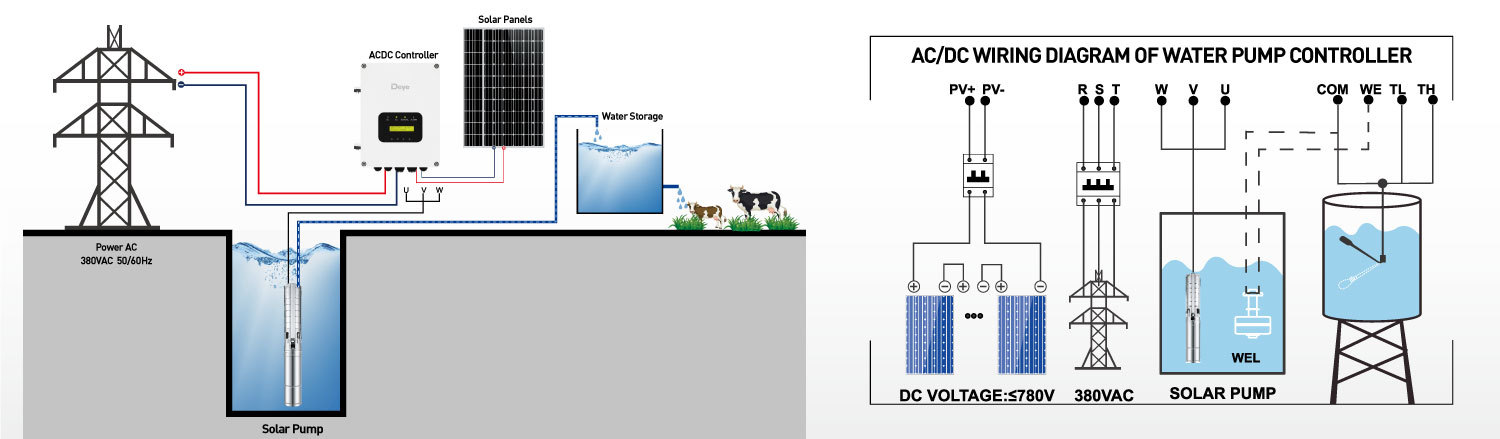

Working Environment and Wiring Diagram

The advantages of Solarker AC/DC solar pump controller

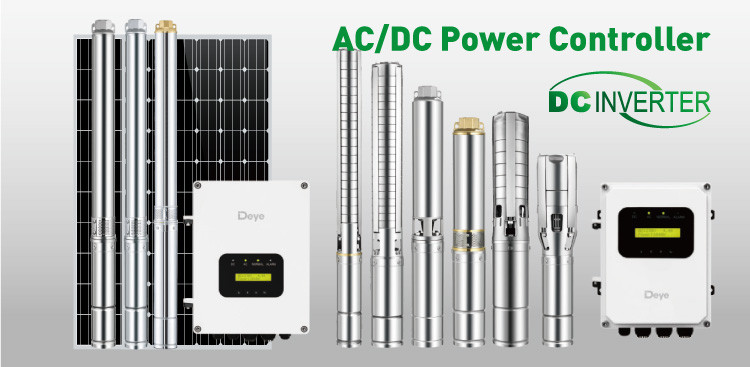

AC/DC Controller

1/ Waterproof grade: IP65

2/ Ambient temperature: -15℃~60℃

3/ Working environment humidity: 30% -90%

4/ Maximum input current: 18A

5/ Liquid Crystal Display(LCD): displays the power, voltage, current, speed and other working condition,enhanced user convenience and experience.

6/ Permanent Magnet Synchronous Motor: Position-free on field-oriented control

7/ Efficient Energy Management: Including MPPT technology to maximize solar energy usage and minimize energy waster.

8/ Intelligent Protection On Motor Drive : Adopts innovative intelligent protection technology to ensure the motor never burn, and providing higher operatinal safety.

9/ Comprehensive Protections: Includes protection of over-voltage, under-voltage, over-current, phase loss, water shortage,short circuit, high temperature...

10/ Error Code Memory: Error reporting, storing fault code history, simplifying troubleshooting.

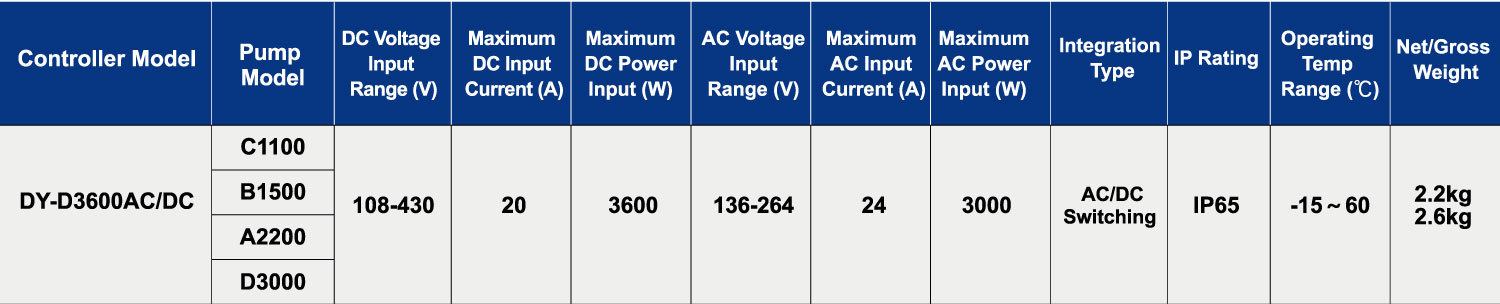

AC/DC Controller Specifications(1100-3000W)
