Off Grid Solar Expert--Solarker
Off Grid DC Solar Water Pump Reliable & Efficient 100% Portable Solar Powered DC Water Pump
| Categories | DC Submersible Solar Pump |
|---|---|
| Brand | Solarker Hybrid ACDC Solar |
| Model | DY-900DC |
| DC Input | 30-110V DC |
| Maximum Power DC | 900W |
| Net Weight | 1.3kg |
| Solar Panel | 1-2*500W |
| Update Time | Sep 22,2025 |
Detail Information
Solar Water Pump
Solar & DC Inverter Pump Technology Leader
Solarker & Deye DC Solar Water Pump is a 100% solar-powered solution, perfect for off-grid locations, farms, and garden irrigation. With no electricity dependency, this eco-friendly pump ensures cost savings and sustainability. Featuring a brushless motor for quiet operation and high durability, it’s the best choice for remote water supply needs.
Solarker Deye DC Solar Water Pump Features
Technical Characteristics

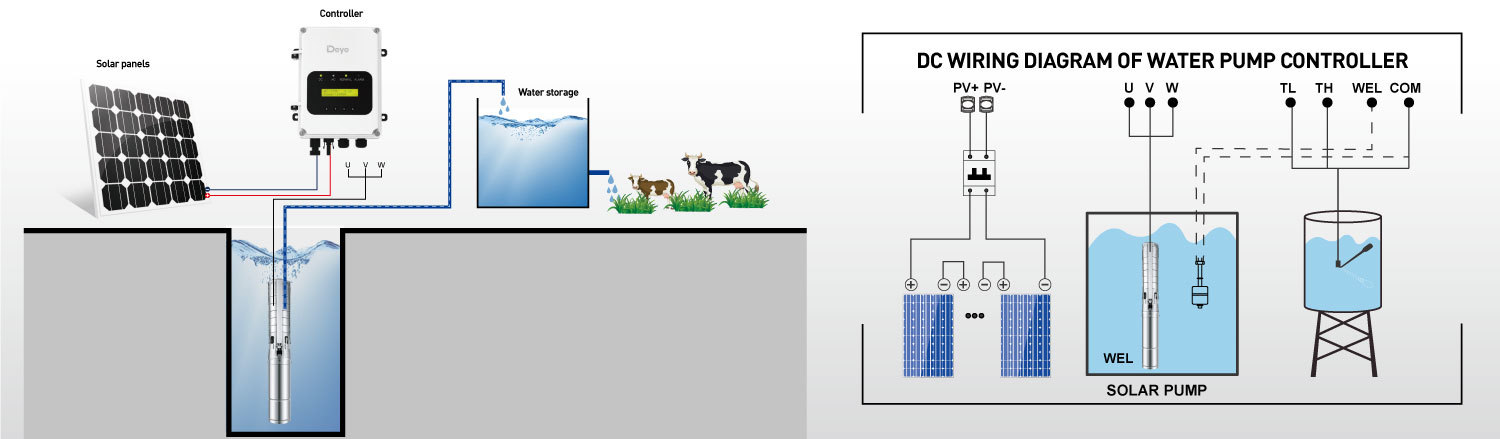

Working Environment and Wiring Diagram
How Solarker solar water pump works?
The solar panel generates DC power under the sunlight during the day. The input terminal of the Solarker/Deye MPPT DC water pump controller tracks the power of the solar panel, and then converts the unstable DC power into orthodox wave power and outputs it to the permanent magnet synchronous motor through the U/V/W terminal. Then drive the water pump motor to rotate.
The advantages of Solarker AC/DC solar pump controller
1/ Waterproof grade: IP65
2/ Ambient temperature: -15℃~60℃
3/ Working environment humidity: 30% -90%
4/ Maximum input current: 18A
5/ Liquid Crystal Display(LCD): displays the power, voltage, current, speed and other working condition,enhanced user convenience and experience.
6/ Permanent Magnet Synchronous Motor: Position-free on field-oriented control
7/ Efficient Energy Management: Including MPPT technology to maximize solar energy usage and minimize energy waster.
8/ Intelligent Protection On Motor Drive : Adopts innovative intelligent protection technology to ensure the motor never burn, and providing higher operatinal safety.
9/ Comprehensive Protections: Includes protection of over-voltage, under-voltage, over-current, phase loss, water shortage,short circuit, high temperature...
10/ Error Code Memory: Error reporting, storing fault code history, simplifying troubleshooting.
The advantages of Solarker DC solar pump controller
2/ Off grid work, no grid power, no battery
3/ SVPWM high efficiency control
4/ MPPT tracking efficiency 99.9%
5/ Set Pump Speed or Max Power Consumption from controller
6/ Led Display checking Solar Power output, DC voltage, DC current, Pump speed 7/Automatically turn on when solar power come next morning
8/ Soft start, low current
9/High voltage, Low voltage, Over current, High Temperature protection
10/ Mc4 connector easy sonnection
11/ Anti-reverse connecting

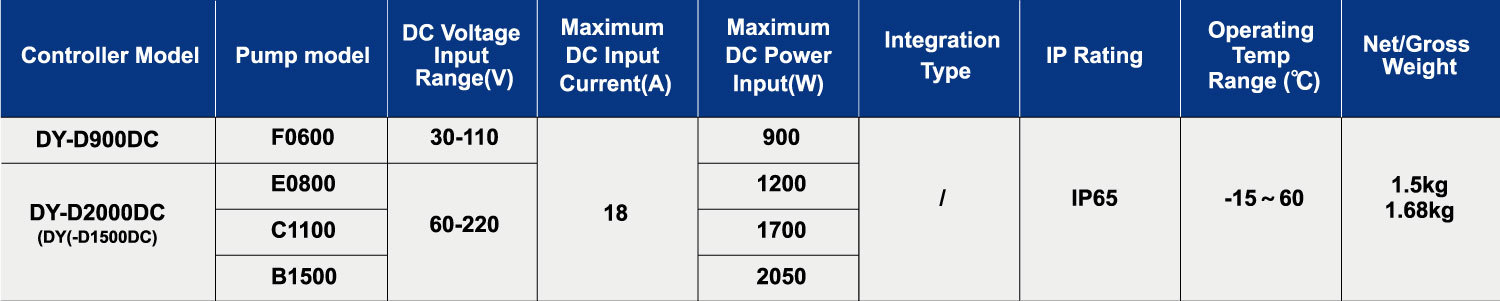

DC Controller Specifications(600-1500W)
Solar Submersible Water Pump Specs
Projects of Solarker Solar Pump
