Hybrid ACDC Solar Air Conditioner For USA 120/240V
| Categories | Solar Air Conditioner |
|---|---|
| Brand | Solarker Hybrid ACDC Solar |
| Model | SK2-ACDC-12K |
| Rated Cooling Capacity | 12000(3000-12600) BTU |
| Rated Cooling Power Input | 940(190-1050) W |
| Rated Heating Capacity | 3650(900-3800) W |
| Grid AC Power | 120V/240V-60HZ |
| Solar DC Power Vom | 80-380V DC(By Solar Panel) |
| DC Inverter Compressor | Highly Twin Rotary DC Inverter |
| MPPT Solar Controller | Built-In |
| Working Temperature | -10 to 58℃ （T3 Tropical） |
| Download DOC |  |
| Update Time | May 16,2024 |
Detail Information

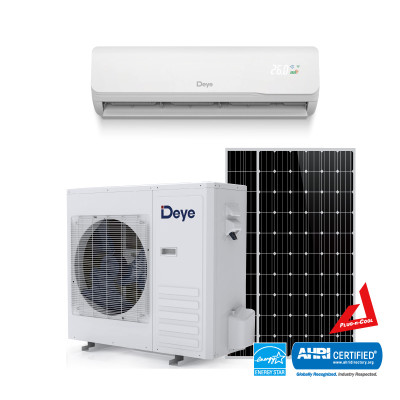

Solarker Hybrid AC/DC Solar Air ConditionerSK2-ACDC-12K
Solarker Solar Powered Air Conditioner 120/240V use full DC inverter compressor, full DC motors, utilizes the unstable DC power generated by photovoltaic panels, does not need inverter conversion, does not need batteries or AC grid power stand by to balance, and directly supplies DC power to the compressor and motor, using VRF frequency conversion Technology, the operating frequency of the compressor and DC motor varies according to the solar panel output DC power to achieve a stable operation state.
About Installation
Hybrid AC/DC Solar AC uses a built-in MPPT booster controller, which is very easy to install. Install the indoor unit and outdoor unit just like ordinary air-conditioning installations, connect to the grid power through L/N terminal or solar panel DC power through MC4 connectors from the outdoor unit, and the air-conditioning can work normally.
How does Solarker Hybrid ACDC solar air conditioner works
Solarker Hybrid AC/DC solar air conditioner does not require batteries or solar inverters. Under normal daylight conditions, the DC inverter compressor is directly driven by the solar DC power generated by 3-8 solar panels to cool or heat according to the set temperature. At night or in rainy days, when the solar light is insufficient, the air conditioner will automatically calculate and obtain insufficient electricity from the grid power to work, automatically balance the grid AC and solar DC electricity, and make the system run stably throughout the day.
Differences between Solarker Hybrid AC/DC solar air conditioners and ordinary air conditioners
1. Hybrid AC/DC solar air conditioner must use DC Inverter Compressor and BLDC motor
2. Hybrid AC/DC solar air conditioners use the twin rotary inverter compressor to ensure that the noise and vibration of the external machine are small and the energy efficiency is excellent.
3. Hybrid AC/DC solar air conditioner get smaller starting current: 1-3A, wider voltage operating range: AC 80-290V
4. Hybrid AC/DC solar air conditioners use EEV to precisely control refrigerant flow, high efficiency and energy saving
5. The solar MPPT module electronic control board must be connected to the compressor and motor and communicate
6. Improved PV DC safety protection
7. Improved fault code warning and after-sales service code for easier service
8. Both Grid AC power and Solar DC power need to be powered from the outdoor unit
9. Statistical data display of solar DC solar power and AC grid power consumption(Solarker get from the mob APP)
10. Even if it is not connected to solar panel, it is only necessary to achieve ultra-high energy efficiency in the Grid AC mode to achieve the greatest energy saving purpose
11. Only solar power in day time the unit works stable without grid power
Structure of Solarker Hybrid ACDC solar air conditioner

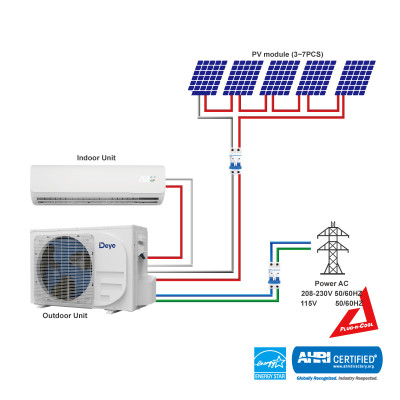

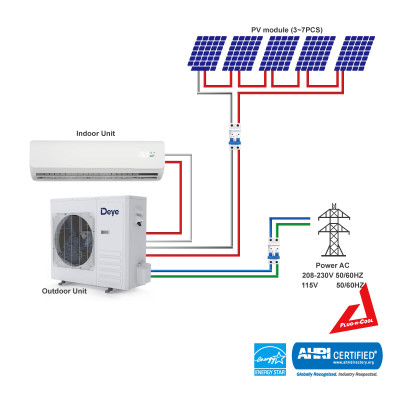

Installation of Solarker Hybrid ACDC solar air conditioner
What are included in the Solarker solar air conditioner packages
|
Packing List
|
||
Number | Name | Quantity |
No.1 | Air Conditioner Indoor Unit | 1 |
No.2 | Air Conditioner outdoor Unit | 1 |
|
No.3
|
Remote Controller
|
1
|
|
No.4
|
Remote Controller Holder
|
1
|
No.5 | AAA Battery | 2 |
No.6 | In&Out Connecting Wire | 1 |
|
No.7
|
Installtion Instructions
|
1
|
|
No.8
|
Wall Screws
|
5
|
No.9 | Connecting Copper Pipe | 1+1 |
No. 10 | Indoor Unit Hanger | 1 |
No. 11 | Pipe Paking Belt | 1 |
No.12 | Drain Pipe | 1 |
No.13 | Pipe Jacket | 1 |
No.14 | Mc4 Connector | 1+1 |
Parameter
|
Solar Features
There is many special features of Solarker hybrid ACDC solar powered air conditioner such as: AC/DC solar power meter data from APP, AC power 3 stages limitation, RS485 control, pls check details below:
100% Solar Driven-Off Grid Work
Pure solar DC power driven DC compressor and motor in the day without grid or battery backup
Auto Balance AC and DC Power
Always solar DC priority, AC/DC auto balance when cloudy days with grid power stand by
Wide MPPT Voltage
VMP: 80V-380Vdc
VOC: 390Vdc
ISC: 13A(Over 13A no damage)
MPPT High Tracking Efficiency
MPPT tracking efficiency can reach 99.9%
High Solar Safety Protection
PV input lightning protection
Residual current monitoring unit
Output over current Protection
Output over voltage Protection
Built-In MPPT Solar Controller
The Solar Mppt Booster build inside the outdoor unit with air condtioner outdoor controoler. No need extra solar inverter installation.
MC4 Solar Panel Connector
Outdoor unit with MC4 connector to easily connect solar panel PV+ and PV-
APP Power Monitor
Check solar power data and AC power consumption history data by app anytime anywhere. Easily know how much saving energy everyday.
3 Stage Grid AC Power Limiter
Limit the air conditioner AC power input consumption by 25% 50% 75%
LED display with DC Solar
Air conditioner indoor unit display light board displays Solar/Grid power working status.
Auto Restart Next Morning
Air Conditioner will automatically restart itself when the solar return in the morning next day
RS485 Communication
Air Conditioner indoor unit capable with RS485 communication connector to control the unit.
DC Inverter Air Conditioner Features
Twin Rotay DC Inverter Compressor
High Efficiency, low noise level, stable working, longer life design. Powerful Cooling.
Low Noise DC Motor
DC fan motor, higher efficiency and accurate control
Golden Fin Evaporator and Condenser
Golden Fin is more resistant to oxidation and corrosion than ordinary blue fins of most
WiFi Remote Control
WIFI connection to the air conditioner and control anywhere and anytime through mobile APP
Wide Grid AC Voltage
With DC inverter compressor and the self-developed electronic control system, the air conditioner can be started and operated normally under a voltage between 90 and 250V in order to solve the problem of unstable voltage
Fault Code Indicate
When the machine operates with problems, display section will show the corresponding fault code to make after -sales service convenient and prompt.
Labyrinth PCB Cooling Radiator
Outdoor inverter electric control box uses labyrinth design, and proved by 2H rainstorm simulation test, it won’t get wet even in the typhoon day
5VA security controller Box
The highest level of fire-proof materials are adopted to protect the internal electronic control components, and prevent fire due to internal and external factors upon an accident.
Dual Side Water Outlets
The water outlet can be installed on either left or right side of the water tray for your convenience. connector to control the unit.
Environmentally Friendly Refrigerant
R32 or R410A refrigerant can be selected
58℃ Tropical Temperature Working
T3 System, High EER level design, the unit works under 58 degree middle east tropical temperature
EEV Accurate Refrigerant Control
System with EEV control the flow of refrigerant, reach higher energy efficiency level
